Condensate ( drain ) pump Aspen Silent Plus Mini Aqua (5G) – Condensate Pump

Price: 221.18лв. €113.09

Code:

30
Weight:

1.000 Kgs

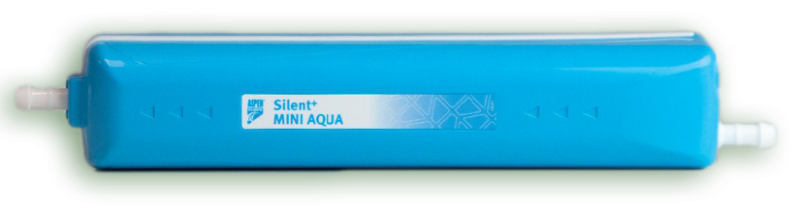

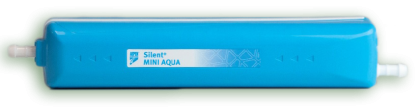

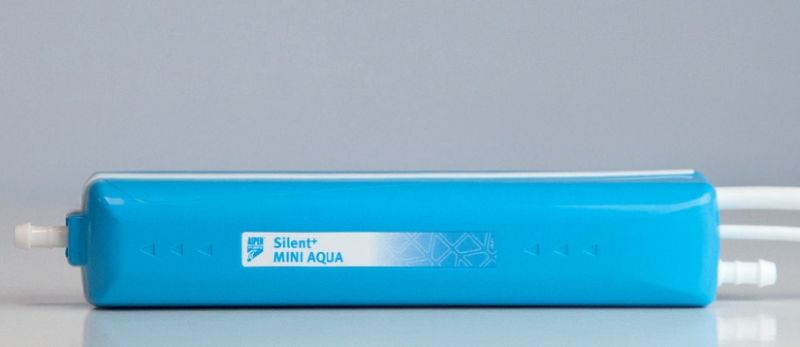

Aspen Silent Plus Mini Aqua (5G) – Condensate Pump

Description

The Aspen Silent Plus Mini Aqua (5G) retains its sleek and slender design, offering unmatched installation flexibility. It fits neatly into trunking or directly inside mini-split units. Featuring the proven 5th Generation Silent+ technology, it delivers outstanding quietness at just 16 dB(A). Its intelligent, adaptive flow control extends pump life, improves reliability, and enhances energy efficiency. Quietly brilliant.

_AS 1615117042

Condensate ( drain ) pump Aspen Silent Plus Mini Aqua (5G) – Condensate Pump

Send to friend

Rate this product

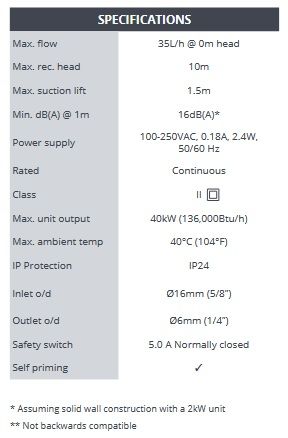

⚙️ Technical Specifications

Parameter	Specification

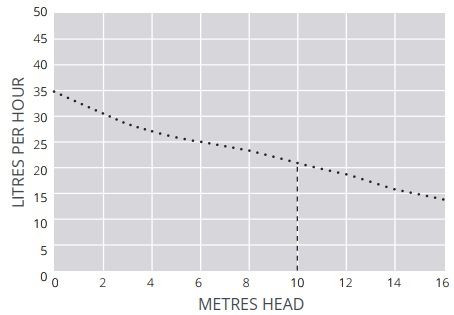

Max flow rate	≈ 35 l/h @ 0 m head (≈ 5.8 gph)
Max discharge head	10 m
Max suction lift	1.5–2 m
Noise level	16 dB(A) @ 1 m
Power supply	100–250 VAC, 0.1–0.18 A, 16 W, 50/60 Hz
Max A/C unit capacity	Up to 16 kW (~54,000 BTU/h)
Protection class	IP24
Safety switch	3 A "normally closed" dry contacts
Operating temperature	4 °C – 40 °C
Self-priming	Yes
Motor type	Fully potted for noise and vibration isolation
Included in the box	Reservoir with filter and lid, 1.5 m power cable, acoustic damper, tubing, anti-siphon device, anti-vibration mounting kit
Weight	≈ 0.18 kg

✅ Key Advantages

Ultra-compact – ideal for tight installations, such as inside mini-split units.
Exceptionally quiet – only 16 dB(A), virtually inaudible.
Adaptive flow technology – extends pump life and reduces power consumption.
Durability and reliability – fully sealed construction resists vibration and moisture.
Easy installation – plug-and-play power cable and complete mounting accessories included.
